52 17 035 Removing and installing/replacing gearing for head restraint adjustment

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove SHAFT FOR BACKREST HEAD ADJUSTMENT

Release screws (4) on left and right.

Tightening torque 52 10 10AZ .

Remove retainer (1) on left and right.

Remove gearing (2) on left and right straight towards front.

Installation:

To ensure identical adjustment of gearings (2), carry out following work step on both gearings:

Twist out component (3) until threaded rods (5) are of equal length.

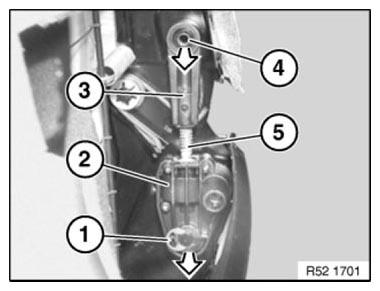

Fig 1: Removing Head Restraint Adjustment Gearing Screws
Courtesy of BMW OF NORTH AMERICA, INC.
