52 17 034 Removing/installing/replacing shaft for head restraint ("backrest upper section") adjustment (newer version)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove BOTH REAR PANELS

Detach seat fabric (1) in marked area.

Fig 1: Identifying Seat Fabric

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip cover (1) inwards.

Pull shaft (2) out of drive and transmission and remove.

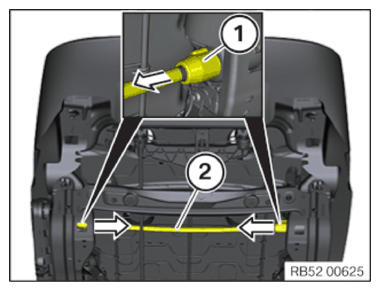

Fig 2: Pulling Backrest Upper Section Adjustment Shaft

Courtesy of BMW OF NORTH AMERICA, INC.
