52 17 028 Removing and installing/replacing pump for pressure distributor

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove REAR PANEL on front seat backrest

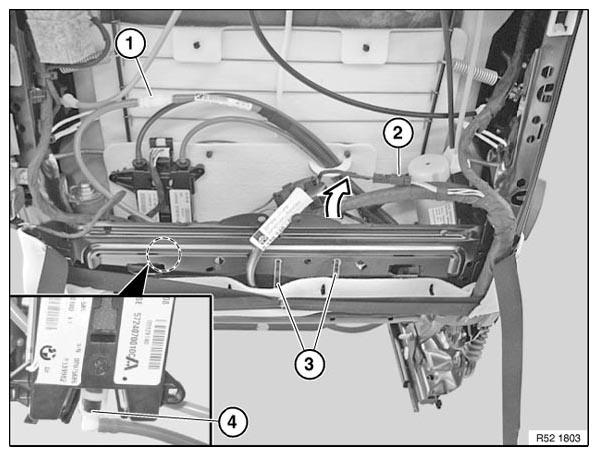

Fig 1: Identifying Pressure Distributor Pump Plug Connection And Quick-Connect Coupling
Courtesy of BMW OF NORTH AMERICA, INC.

Unlock quick-connect coupling (1) and disconnect.

Unfasten plug connection (2) and disconnect.

Cut open cable tie (3).

Installation:

Replace faulty cable ties.

Unlock quick-connect coupling (4) and disconnect.

Lift out pump for pressure distributor.

NOTE: Carry out FUNCTION CHECK WITH ADAPTER CABLE .
