67 31 X01 Removing and refitting/replacing backrest width adjustment motor

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove DRIVER'S or FRONT PASSENGER seat.
Remove REAR PANEL ON FRONT SEAT
Remove SIDE AIRBAG if necessary

Detach seat fabric (1) in marked area.

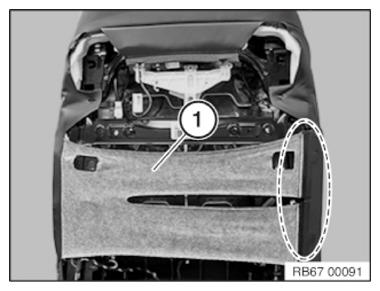

Fig 1: Identifying Seat Fabric In Marked Area

G09879845

Courtesy of BMW OF NORTH AMERICA, INC.

Fold seat fabric (1) slightly forwards as shown.

Drill out expanding rivet (2).

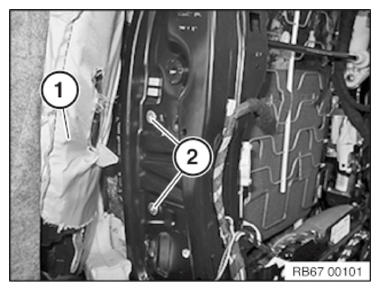

Fig 2: Identifying Seat Fabric And Expanding Rivet

G09880528

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection (1) and disconnect.

Remove backrest width adjustment motor (2).

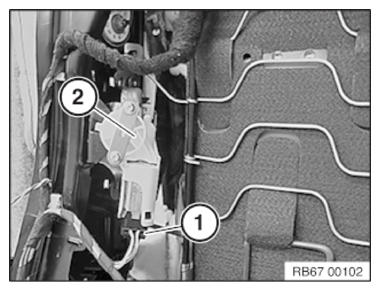

Fig 3: Identifying Backrest Width Adjustment Motor And Plug Connection

G09880529

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE:

Carry out FUNCTION CHECK WITH ADAPTER CABLE

Replacement

INITIALIZE seat height adjustment drive unit.
