67 31 570 Removing and installing/replacing drive unit for head restraint height adjustment on left or right front seat

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove CRASH-ACTIVE HEADREST

Pull backrest cover (1) in direction of arrow from sheet metal tabs (2).

Detach backrest cover (1) on both sides from backrest frame.

Lift cover with padding (1) in upper area over backrest frame.

Fig 1: Pulling Backrest Cover From Sheet Metal Tabs

G04742749

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

Unfasten screws (2).

Tightening torque 67 31 3AZ .

Feed out drive unit for head restraint height adjustment (3) in direction of arrow and remove.

Fig 2: Removing Drive Unit For Head Restraint Height Adjustment

G05479216

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE:

Carry out FUNCTION CHECK WITH ADAPTER CABLE

Necessary preliminary tasks:

Remove CRASH-ACTIVE HEADREST

Unfasten plug connection (1) and disconnect.

Unlock latch mechanism (2).

Feed out drive unit for head restraint height adjustment (3) in direction of arrow and remove.

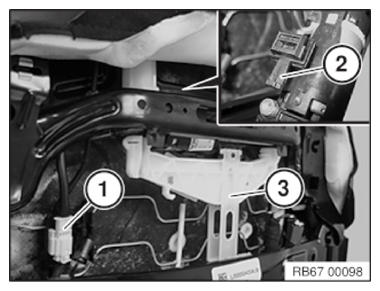

Fig 1: Removing Latch Mechanism And Plug Connection

G09879871

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE:

Carry out FUNCTION CHECK WITH ADAPTER CABLE
