67 31 540 Removing and installing/replacing drive for backrest head adjustment

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove BOTH REAR PANELS ON FRONT SEAT BACKREST

Disconnect plug connection (1).

Release screw (2).

Tightening torque 67 31 4AZ .

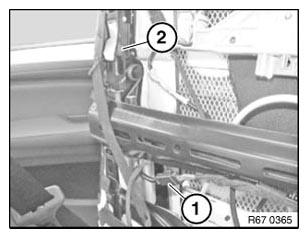

Fig 1: Identifying Plug Connection And Screw

G06213994

Courtesy of BMW OF NORTH AMERICA, INC.

Pull shaft (1) in direction of arrow out of shaft receptacle (2).

Installation:

Make sure shaft (1) is correctly seated in receptacle (2).

Release retaining ring (3).

Feed out drive unit for backrest head adjustment (4) and remove.

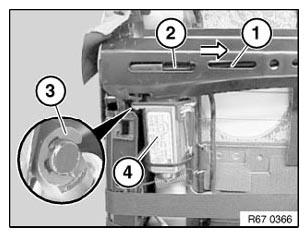

Fig 2: Removing Backrest Head Adjustment Drive Unit And Retaining Ring

G06213995

Courtesy of BMW OF NORTH AMERICA, INC.

Removal and installation only:

Do not turn spindle (1) in order not to change measurement A.

Replacement

Adopt measurement A of removed drive unit for backrest head adjustment (2). If necessary, adjust measurement A by turning spindle (1).

INITIALIZE drive unit for backrest head adjustment.

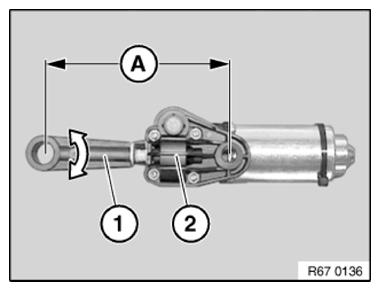

Fig 3: Turning Spindle Of Backrest Head Adjustment Drive Unit

G09881934

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE:

Carry out FUNCTION CHECK WITH ADAPTER CABLE
