67 31 540 Removing and installing/replacing backrest upper section adjustment motor

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove BOTH REAR PANELS ON FRONT SEAT BACKREST

Detach seat fabric (1) in marked area.

Fig 1: Identifying Seat Fabric In Marked Area

G09879845

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten shaft (1) and pull out of holder in direction of arrow.

Slacken nut (2).

Fold seat fabric (3) forwards.

Installation note:

Make sure shaft (1) is correctly seated in holder.

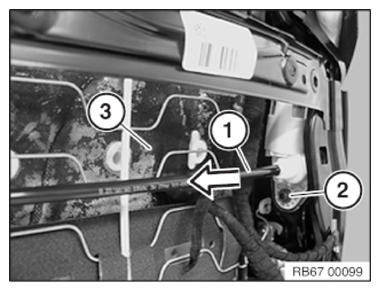

Fig 2: Installing Backrest Adjustment Motor Shaft In Holder

G09880418

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection (1) and disconnect.

Pull out clamp (3).

Remove backrest upper section adjustment motor (2).

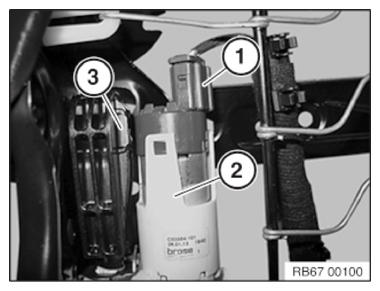

Fig 3: Identifying Backrest Upper Section Adjustment Motor And Clamp

G09880419

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement

Remove GEAR UNIT FOR BACKREST UPPER SECTION ADJUSTMENT .

Transfer dimension A of the new drive (1) to gear unit (2) by turning the spindle (3).

INITIALIZE backrest upper section adjustment motor.

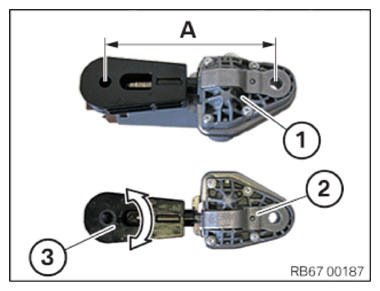

Fig 4: Turning Spindle Of Backrest Upper Section Adjustment Motor

G09880420

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE:

Carry out FUNCTION CHECK WITH ADAPTER CABLE
