54 13 090 Removing and installing/replacing wind deflector

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Open slide/tilt sunroof

Insert screwdriver (1) between the two holders.

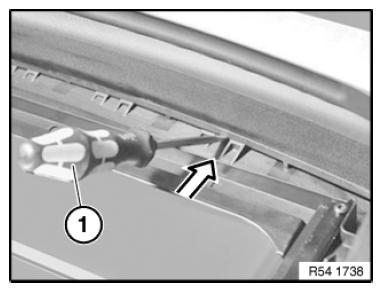

Fig 1: Inserting Screwdriver Between Holders

G08485213

Courtesy of BMW OF NORTH AMERICA, INC.

Press wind deflector (1) down.

Keep screwdriver (2) in position.

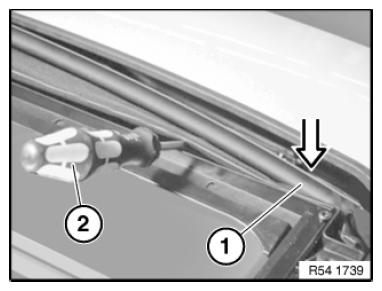

Fig 2: Pressing Wind Deflector Down

G08485214

Courtesy of BMW OF NORTH AMERICA, INC.

Continue pressing down on wind deflector (1).

Insert screwdriver (2) next to first hold-down device (3).

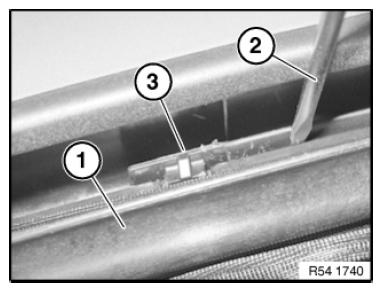

Fig 3: Inserting Screwdriver To First Hold-Down Device

G08485215

Courtesy of BMW OF NORTH AMERICA, INC.

Push welt (1) of net away from hold-down device using screwdriver (2).

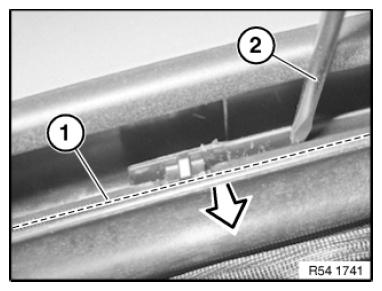

Fig 4: Pushing Welt Of Hold-Down Device Using Screwdriver

G08485216

Courtesy of BMW OF NORTH AMERICA, INC.

Lift welt (1) out over holders using screwdriver.

Repeat procedure on remaining holders and hold-down devices.

Installation note:

First slide welt of net below outer hold-down device.

Press welt over holders until welt engages audibly.

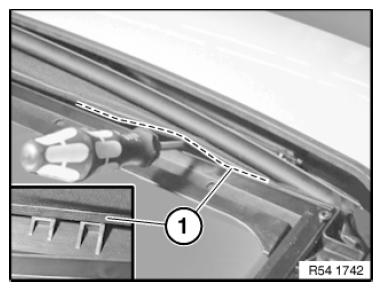

Fig 5: Lifting Welt Holders Using Screwdriver

G08485217

Courtesy of BMW OF NORTH AMERICA, INC.

Press retaining lugs on left and right and push slide (1) forward.

Remove wind deflector.

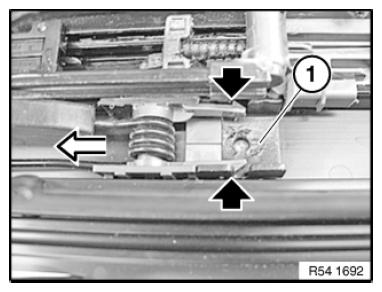

Fig 6: Pressing Left/Right Retaining Lugs

G08485218

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Make sure spring (1) is fitted correctly.

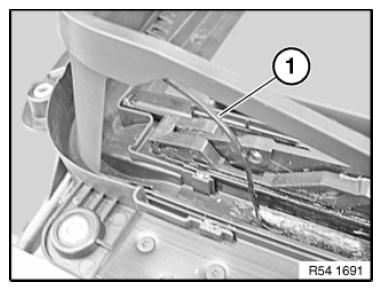

Fig 7: Identifying Wind Deflector Spring

G08485219

Courtesy of BMW OF NORTH AMERICA, INC.
