54 13 046 Removing and installing/replacing panorama glass roof roller sunblind
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
NOTE:
The right side is removed in the same way as the left side.
Move roller sunblind into fully opened position.
If drive is faulty: by way of emergency actuation with offset hexagon socket.
Move roller sunblind into fully opened position.
If drive is faulty: by way of emergency actuation with offset hexagon socket.

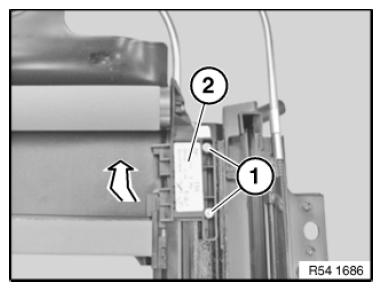

Release screws (1).
Pull holder (2) upwards out of guide and remove rearwards.
Installation note:
Align arrows of holder and guide.
Tighten down screws.

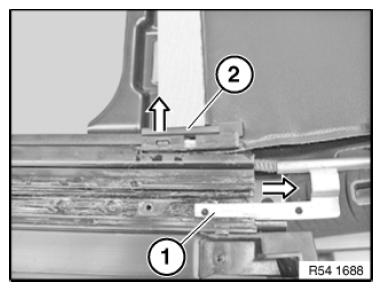

Pull rising cable with guide tube (1) rearwards out of rail until roller sunblind bow (2) is exposed.
Remove roller sunblind bow (2) towards top from driver.
Installation note:
Make sure roller sunblind bow (2) and clock spring are correctly fitted in guide rail.
Installation note:

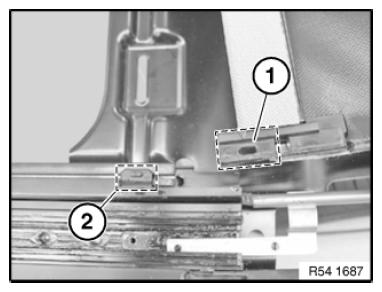

Make sure rubber sunblind bow (1) is correctly fitted driver (2).
