22 32 050 Replacing cross-member for transmission mounting (N63) AWD

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove rear UNDERBODY PROTECTION
Support transmission with lifter.

Release screws (1).

Remove cover (2).

Fig 1: Identifying Transmission Cover With Screws

G08488083

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws.

Tightening torque 22 32 3AZ .

Fig 2: Locating Transmission Mounting (N63) Screws - AWD

G08495638

Courtesy of BMW OF NORTH AMERICA, INC.

Slacken nut (1).

Tightening torque 22 32 6AZ .

Pull out screw (2).

Move transmission cross member (3) in direction of arrow and remove screw (2).

Remove transmission cross-member.

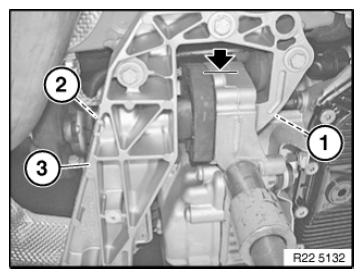

Fig 3: Identifying Transmission Cross Member, Screw, Nut

G08495639

Courtesy of BMW OF NORTH AMERICA, INC.
