24 00 055 Installing exchange gearbox (GA8HP70Z) AWD

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT:

Do not let skin come in contact with transmission oil and do not inhale fuel vapors.
Wear protective gloves.
Ensure adequate ventilation.

Drain automatic transmission fluid at oil drain plug.

Tightening torque 24 11 2AZ .

IMPORTANT: After completion of repair work, program control transmission control unit.

Recycling

Catch and dispose of escaping transmission oil.

Observe country-specific waste disposal regulations.

IMPORTANT:

Before installing replacement transmission, always flush TRANSMISSION FLUID COOLER TOGETHER WITH LINES .
After completion of repair work, check transmission oil level. Refer to CHECKING TRANSMISSION FLUID LEVEL .
Use only approved transmission oil. Refer to APPROVED AUTOMATIC TRANSMISSION FLUIDS FOR INITIAL FILLINGS AND CORRECTING FLUID LEVELS .
Failure to comply with this requirement will result in serious damage to the automatic transmission

Exchange transmissions come filled with oil

Necessary preliminary work

Remove AUTOMATIC TRANSMISSION .
Remount the TRANSFER BOX .
Remount TRANSMISSION MOUNTING BRACKET . (Only N57)
Remount the exhaust system holder. (only N57)

Remount release lever (3).

Tightening torque 24 51 3AZ .

Remount holder for cable.

Tightening torque 24 51 4AZ .

NOTE: Bowden cable and release lever for the emergency release discontinued with:

F01/as from production date 09/2010
F07 from production date 03/2010
F10/F11 as from production date 06/2010

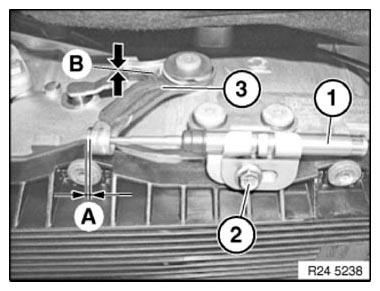

Fig 1: Identifying Screw, Cable And Lever

Courtesy of BMW OF NORTH AMERICA, INC.

Remount transportation retainer.

Remount all cable clips.

Remount all seal plugs.

Remount protective cap on output shaft.

IMPORTANT: After removing transportation retainer, secure torque converter against slipping out.

Transmission identification:

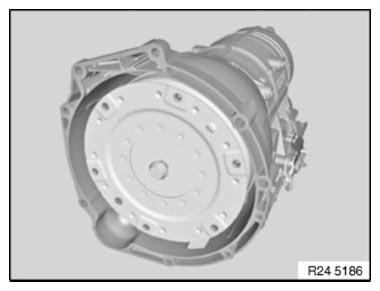

Fig 2: Identifying Transportation Retainers

Courtesy of BMW OF NORTH AMERICA, INC.

On type plate
