24 00 054 Installing exchange transmission (GA8HP45Z)
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
- Do not let skin come in contact with transmission oil and do not inhale fuel vapors.
- Wear protective gloves.
- Ensure adequate ventilation
Drain automatic transmission fluid at oil drain plug.
Tightening torque 24 11 2AZ .
IMPORTANT:
After completion of repair work, program control transmission control unit.
Recycling
Catch and dispose of escaping transmission oil.
Observe country-specific waste disposal regulations.
IMPORTANT:
- Before installing exchange transmission, always flush TRANSMISSION OIL COOLER TOGETHER WITH LINES .
- After completion of repair work, check transmission oil level. Refer to CHECKING TRANSMISSION FLUID LEVEL .
- Use only approved transmission oil. Refer to APPROVED AUTOMATIC TRANSMISSION FLUIDS FOR INITIAL FILLINGS AND CORRECTING FLUID LEVELS
.
Failure to comply with this requirement will result in serious damage to the automatic transmission
Exchange transmissions come filled with oil
Necessary preliminary tasks
- Remove AUTOMATIC TRANSMISSION
- Modify TRANSMISSION BEARING BLOCK

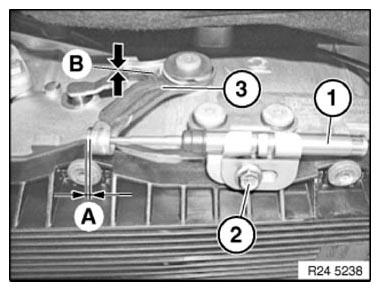

Swap over release lever (3).
Tightening torque 24 51 3AZ .
Convert holder for cable.
Tightening torque 24 51 4AZ .
NOTE:
Bowden cable and relay lever for the emergency release are discontinued for transmissions with a production date beginning on 03/2010.

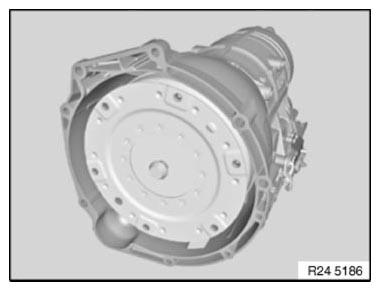

Modify transportation retainers.
Convert all cable clips.
Convert all seal plugs.
Convert protective cap on output shaft.
IMPORTANT:
After removing transportation retainer, secure torque converter against slipping out.
Transmission identification:
- On type plate
