24 00 018 Adjusting gear lever (parking lock emergency release)
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
The emergency release of the parking lock from the passenger compartment is discontinued for GA8HP transmissions:
- F01/F02/F03/F04 GA8HP from production date 09/2010
- F07 GA8HP from production date 03/2010
- F10/F11/F18 GA8HP from production date 06/2010
NOTE:
Check cable for ease of movement.
Move gear selector switch to "P" position.
Control for emergency release must not be actuated.
Move gear selector switch to "P" position.
Control for emergency release must not be actuated.

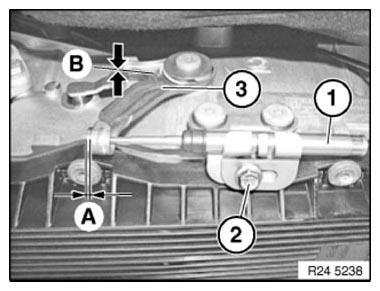

Release screw (2).
Disconnect cable (1).
Installation note:
- Release screw (2).
- Bring release lever (3) into contact with selector shaft by pressing slightly. Distance B=0 mm.
- Adjust cable by means of holder until spacing A ≥ 1 mm is obtained
- Tighten screw (2).
