24 34 022 Replacing sealing cup for transmission housing (GA8HP45Z)
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
IMPORTANT:
- Do not let skin come in contact with transmission oil and do not inhale fuel vapors.
- Wear protective gloves.
- Ensure adequate ventilation.
IMPORTANT:
After completion of repair work, check transmission oil level. Refer to CHECKING TRANSMISSION FLUID LEVEL
.
Use only approved transmission oil. Refer to APPROVED AUTOMATIC TRANSMISSION FLUIDS FOR INITIAL FILLINGS AND CORRECTING FLUID LEVELS .
Failure to comply with this requirement will result in serious damage to the automatic transmission!
Use only approved transmission oil. Refer to APPROVED AUTOMATIC TRANSMISSION FLUIDS FOR INITIAL FILLINGS AND CORRECTING FLUID LEVELS .
Failure to comply with this requirement will result in serious damage to the automatic transmission!
Necessary preliminary tasks
- Remove TRANSMISSION OIL SUMP .
- IF REQUIRED, REMOVE OIL ACCUMULATOR .
- Remove CROSS MEMBER .
IMPORTANT:
Support transmission with workshop jack.

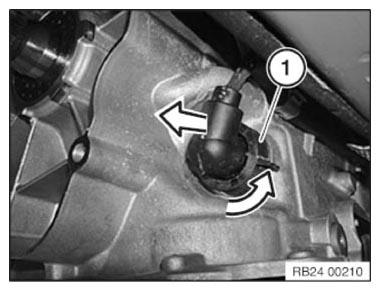

Unlock and disconnect connector (1) by turning.
Insert special tool 24 2 390 in sealing sleeve (1).
Release screw (1) and unlock sealing cup with slide (2).
Tightening torque 24 30 4AZ .
NOTE:
Make a note of installation position of sealing sleeve.
Pull out sealing cup (1).
Installation note:
Fit sealing sleeve in position (lug on inner surface). Turn until lug engages in groove of transmission. Slide in sealing cup.
Lug on sealing cup must not be damaged!
