51 24 133 Removing and installing/replacing drive for Soft Close Automatic on rear lid (top) (soft closure aid)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Partially remove REAR SPARE WHEEL WELL TRIM PANEL (rear expanding rivets)

Unclip (2) drive (3).

Disconnect plug connection (1) and disengage at lock actuator.

Fig 1: Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Disengage Bowden cable at counter support (1) and lock lever (2) of luggage compartment lock (rear lid, top).

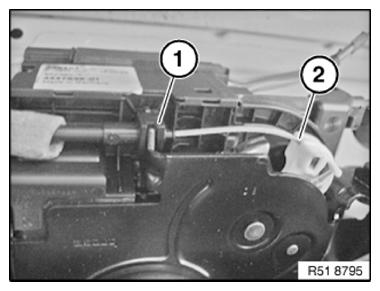

Fig 2: Identifying Counter Support And Lock Lever

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Perform function check with lower rear lid open.
