51 13 316 Removing and installing or replacing trim strip on roof gutter at left or right
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
IMPORTANT:
Make sure that body is not damaged.
Open door at front and rear.
Release edge protection in C-pillar area.

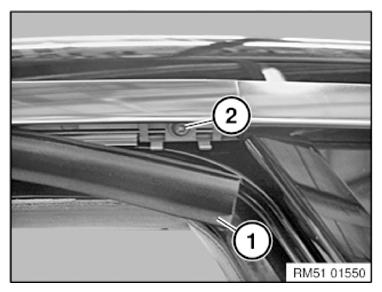

Pull off gasket (1) in rear area toward the bottom.
Release screw (2).
Tightening torque 51 13 6AZ .

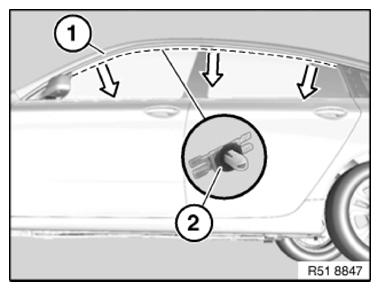

Starting from the rear, use special tool 00 9 325 to detach trim strip (1) from clips (2).
Installation note:
To avoid leaks and noises, check all clamps (2) for visible damage.
If necessary, replace faulty clips (2).
Align clamps (2) on body and fit trim strip (1).
IMPORTANT:
- Carry trim strip by its middle section only (risk of damage)
- Perform installation work with a second person helping
- Prepositioning of trim strip
- Ensure gutter strip runs parallel to side frame (risk of breakage)
