51 13 280 Removing and installing/replacing trim strip on roof frame at left or right

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 321

Graphics are similar.

Lever out trim strip (1) with special tool 00 9 321 starting at the front.

Unclip trim strip (1) in direction of arrow.

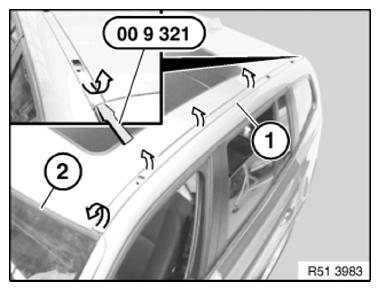

Fig 1: Unclipping Trim Strip

G09879022

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Latch mechanisms (1) of clips (2) must not be damaged.

If necessary, replace the clips (2).

Emergency strategy if T-bolt is broken: CLIP REPAIR FOR ROOF STRIP .

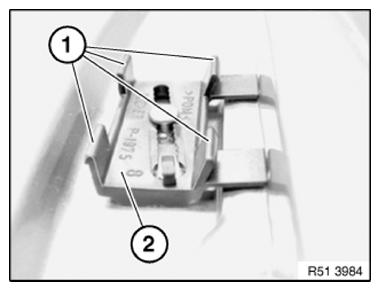

Fig 2: Identifying Latch Mechanisms Of Clips

G09879023

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Place front trim strip (2) against seal (1).

Trim strip (2) must be flush with edge (3) at rear.

Clip trim strip (2) into place completely.

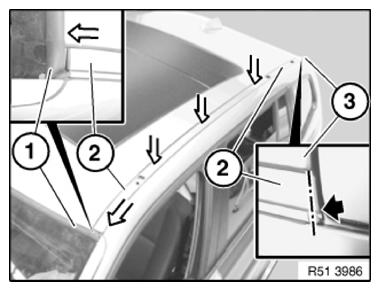

Fig 3: Pressing Front Trim Strip
