51 13 116 Removing and installing/replacing cowl panel cover: Notes

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove both windscreen WIPER ARMS .

Lever out expander rivets (1) on cover (2) on left/right.

Remove cover (2) on left/right.

Installation:

If necessary, replace damaged expander rivets.

Make sure holders (3) are correctly seated.

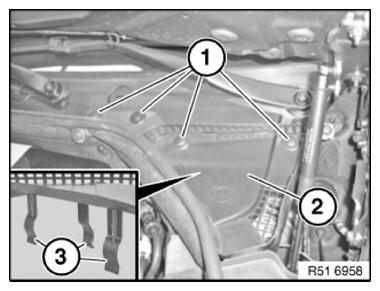

Fig 1: Identifying Expander Rivets On Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Lever out expanding rivets (1) under cover (2) on left and right.

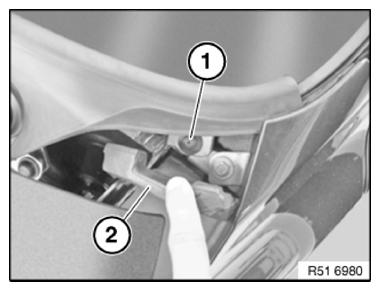

Fig 2: Identifying Expanding Rivets And Under Cover

Courtesy of BMW OF NORTH AMERICA, INC.

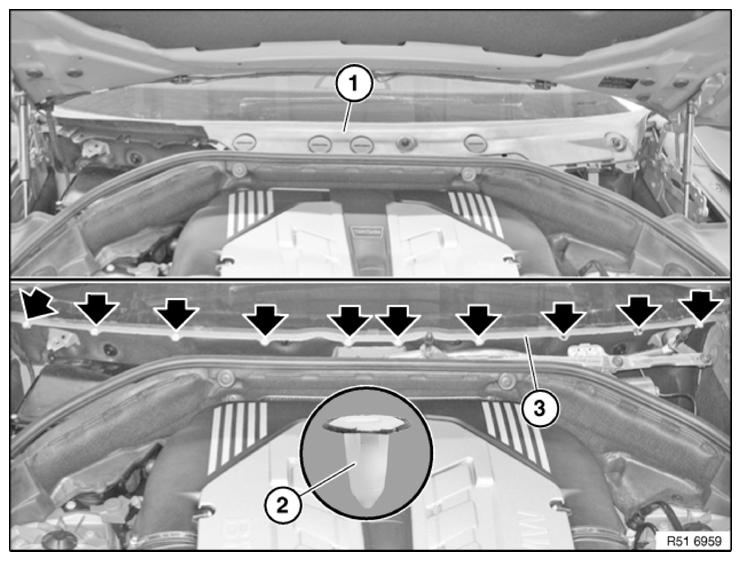

Fig 3: Locating Retaining Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Carefully unclip cowl panel cover(1) at marked locations.

Remove cowl panel cover (1).

Installation:

Retaining clips (2) for rivets must be located at marked locations in cowl panel body.

Replace damaged retaining clips (2).
