51 13 091 Removing and installing/replacing front side panel trim strip, left or right
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:

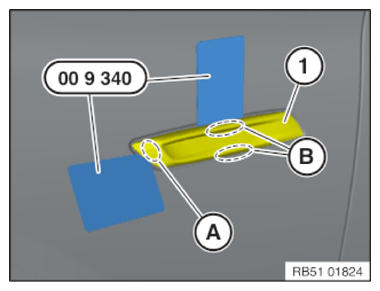

Unfasten the trim strip (1) using special tool 00 9 340 .
- Release front catch (A) first.
- Then release top and bottom catches (B).
Maneuver out trim strip (1) and unplug relevant electrical connector if necessary.
Replacement (depending on version)
- Attach new label to trim strip
- Swap over ULTRASOUND SENSOR FOR PMA .
