51 34... Adjusting the rear left and right window cavity gap of the door window glass

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

51 0 342
51 0 400

Necessary preliminary work:

Remove INNER WINDOW CAVITY COVER STRIP

Cavity dimension, fixed door window glass

Close rear door.

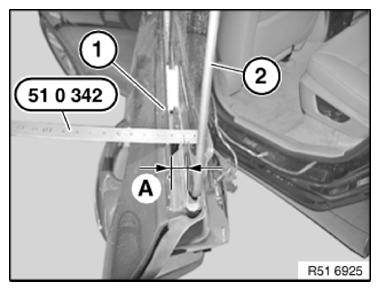

Use special tool 51 0 342 to measure dimension (A) from inside of flange edge (1) to door window glass (2).

Window cavity gap (A):

A = 10 ± 0.8 mm measured in front of door seal in area of C-pillar.

Fig 1: Identifying Window Cavity Gap

Courtesy of BMW OF NORTH AMERICA, INC.

Adjusting cavity dimension, fixed door window glass

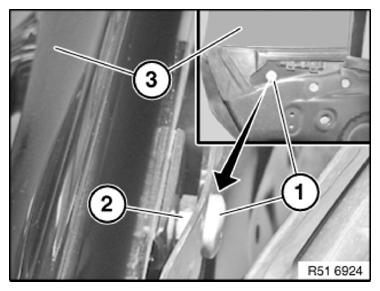

Slacken screw (1) and twist adjusting screw (2) to adjust window cavity gap.

Tighten screw (1).

Tightening torque 51 35 6AZ .

Check window cavity gap, repeat operations if necessary.

Fig 2: Checking Window Cavity Gap

Courtesy of BMW OF NORTH AMERICA, INC.

Cavity dimension, lowerable door window glass

Close door window glass (2).

Close rear door.

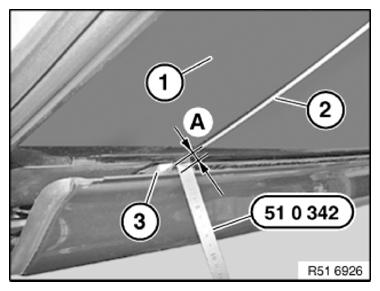

Use special tool 51 0 342 to measure dimension (A) between inside of flange edge (3) and door window glass (2).

A = Window cavity gap 9, 5 ± 0.8 mm measured in area of B-pillar trim panel (1).

Fig 3: Identifying Window Cavity Gap

Courtesy of BMW OF NORTH AMERICA, INC.

Adjusting cavity dimension, lowerable door window glass

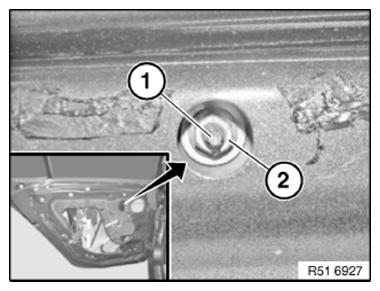

Use special tool 51 0 400 to slacken nut (2) and adjust window cavity gap at adjustment pin (1).

Tighten nut (2).

Tightening torque 51 35 6AZ .

Check window cavity gap, repeat operations if necessary.

Fig 4: Checking Window Cavity Gap

Courtesy of BMW OF NORTH AMERICA, INC.
