51 34 191 Replacing left or right fixed door window in rear window frame

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

51 3 300

Necessary preliminary tasks:

Remove REAR DOOR TRIM PANEL .
Remove REAR WINDOW CAVITY COVER STRIP .
Partially release inner window cavity cover strip in region of fixed window

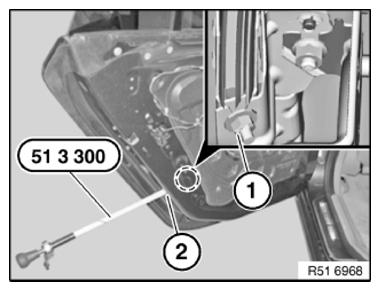

Release nut (1) SW10 with special tool 51 3 300 .

Tightening torque: 51 35 3AZ

Fig 1: Releasing Nut

G09879441

Courtesy of BMW OF NORTH AMERICA, INC.

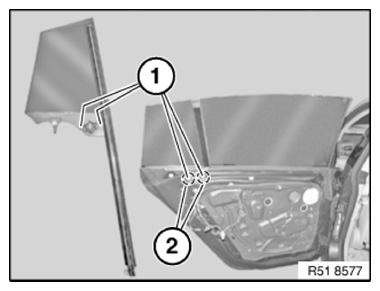

Remove paintwork protection film (2). Release screws (1).

Tightening torque: 51 35 2AZ

Fig 2: Identifying Paintwork Protection Film And Screws

G09879442

Courtesy of BMW OF NORTH AMERICA, INC.

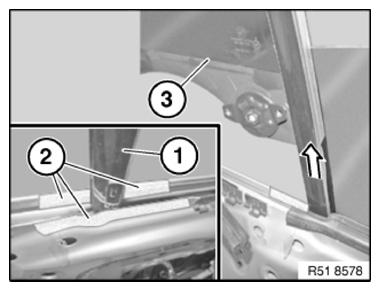

In area of window guide (1), mask window cavity with fabric adhesive tape (2) (risk of damage).

Completely remove side window (3) with window guide in direction of arrow.

Fig 3: Removing Side Window

G09879443

Courtesy of BMW OF NORTH AMERICA, INC.

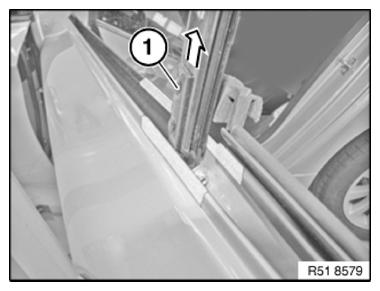

Pull out window guide (1) with side window.

Fig 4: Pulling Out Window Guide

G09879444

Courtesy of BMW OF NORTH AMERICA, INC.

Adjust REAR SIDE WINDOW .
