51 34 171 Replacing rear left or right door window

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

51 3 240

WARNING: Danger of injury!
Carry out work on the power windows only when the power window motor is de-energized (unplug connector).

Necessary preliminary tasks:

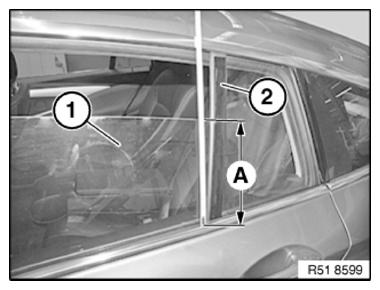

Lower side window (1) to dimension (A) around window guide (2)

A = 200 mm

Fig 1: Identifying Side Window Dimension

G09879445

Courtesy of BMW OF NORTH AMERICA, INC.

Necessary preliminary tasks:

Remove SOUND INSULATION IN REAR DOOR
Remove OUTER WEATHER STRIP

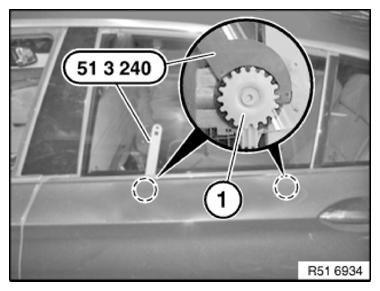

Loosen hook screws (1) with special tool 51 3 240 on ring gear.

Tightening torque 51 35 1AZ .

Fig 2: Loosening Hook Screws

G09879446

Courtesy of BMW OF NORTH AMERICA, INC.

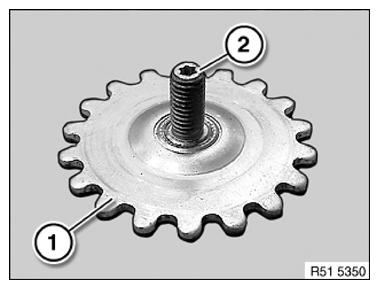

NOTE: Slacken hook screw on ring gear (1) until it can be easily twisted out at the inner star (2).

Fig 3: Slacken Hook Screw On Ring Gear

G09879447

Courtesy of BMW OF NORTH AMERICA, INC.

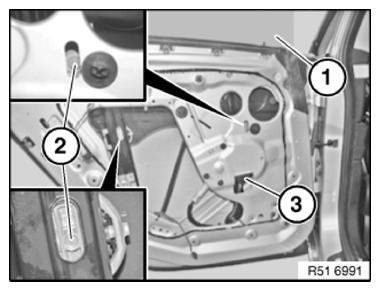

Open door window glass (1) until hook screws (2) are accessible.

IMPORTANT: Danger of injury!
Disconnect plug connection (3) at power window motor (pinch hazard).

Release hook screws (2) (turn in clockwise direction).

Fig 4: Identifying Door Window Glass, Hook Screws And Plug Connection

G09879448

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Door window glass (3) remove for purposes of clarity.

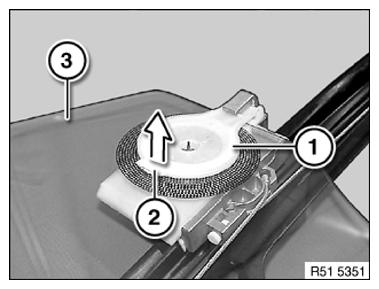

Raise holder (1) at tab (2) and remove door window glass (3) in upward direction.

Fig 5: Removing Door Window Glass

G09879449

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

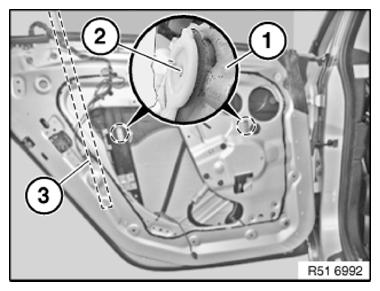

Make sure door window glass (1) is correctly seated on holder (2) and window guide (3).

Adjust DOOR WINDOW GLASS .

Carry out function check on power window regulator and anti-trap mechanism.

If necessary, NORMALIZE power window regulator.

Fig 6: Identifying Door Window Glass, Guide And Holder

G09879450
