51 49... Removing and installing/replacing rear lid storage shelf

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

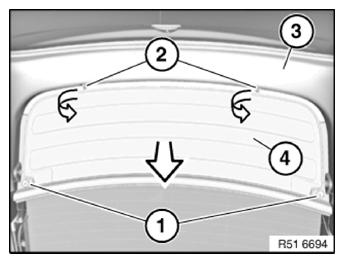

Release screws (1), turn retainers (2) on trim panel (3) 90° to release, remove cover (4) in direction of arrow

Tightening torque: 51 49 3AZ

Fig 1: Removing Rear Lid Storage Shelf

Courtesy of BMW OF NORTH AMERICA, INC.

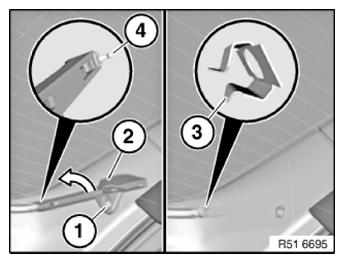

Release retaining rail (2) screw (1) and unclip journal (4) from retainer (3) in direction of arrow.

Tightening torque: 51 49 4AZ

Retainer (3) and journal (4) must not be damaged, replace if necessary.

Fig 2: Removing Retaining Rail, Screw And Journal From Retainer

Courtesy of BMW OF NORTH AMERICA, INC.
