51 49 022 Removing and installing/replacing trim panel for rear lid, side left or right

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Unclip trim panel (1) towards inside.

Installation:

If necessary, replace faulty clips (2).

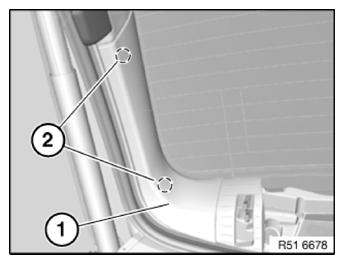

Fig 1: Identifying Trim Panel Clips
G09879700Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Fixtures (2) on trim panel (1) must not be damaged, replace trim panel if necessary.

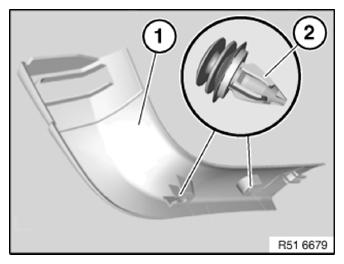

Fig 2: Identifying Fixtures On Trim Panel
G09879701Courtesy of BMW OF NORTH AMERICA, INC.
