51 42... Punching contour for seat memory switch into rear door trim panel

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

Necessary preliminary tasks:

Remove REAR DOOR TRIM PANEL

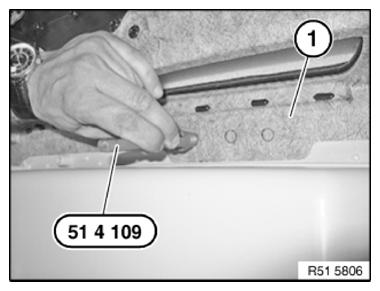

Use special tool 51 4 109 to cut holes into door trim panel (1) at marked locations.

Fig 1: Cutting Holes Into Door Trim Panel

G09879497

Courtesy of BMW OF NORTH AMERICA, INC.

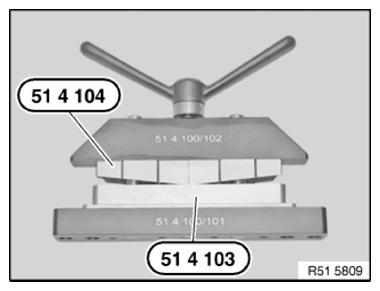

IMPORTANT: Special tools 51 4 103 and 51 4 104 must be used as cutting implements for punching work on F07 back.

Fig 2: Cutting Implements For Punching Work

G09879498

Courtesy of BMW OF NORTH AMERICA, INC.

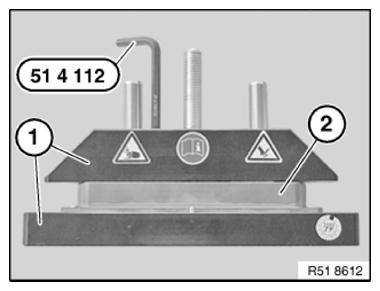

IMPORTANT: When changing cutting implements (2), use special tool 51 4 112 to secure to punching tool (1) in pushed together condition (risk of damage).

Fig 3: Identifying Special Tool (51 4 112)

G09879499

Courtesy of BMW OF NORTH AMERICA, INC.

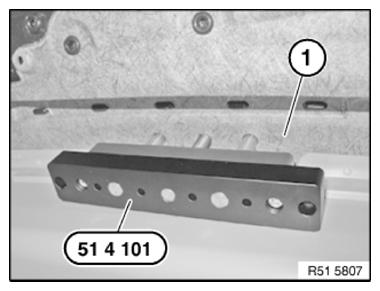

Slide special tool 51 4 101 through holes stamped into door trim panel (1).

NOTE: Guide pins of punching tool are coded. Distortion is thus not possible.

Fig 4: Identifying Punching Tool Guide Pins

G09879500

Courtesy of BMW OF NORTH AMERICA, INC.

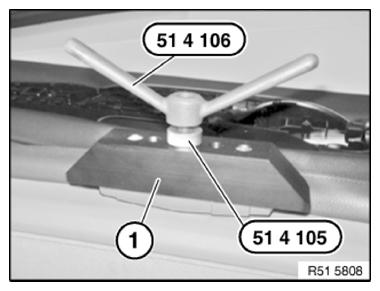

Mount special tools 51 4 105 and 51 4 106 on punching tool (1).

Compress punching tool (1) via spindle.

Fig 5: Compressing Punching Tool Via Spindle

G09879501

Courtesy of BMW OF NORTH AMERICA, INC.

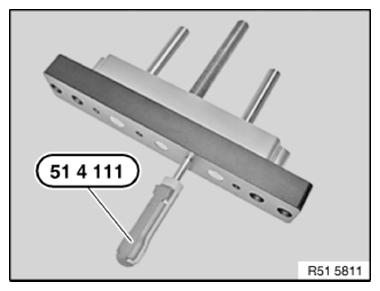

Use special tool 51 4 111 to press punching remnants out of punching tool from rear.

NOTE: This work step is necessary to prevent the cutting surfaces from being damaged during a renewed punching operation.

Fig 6: Pressing Punching Remnants

G09879502

Courtesy of BMW OF NORTH AMERICA, INC.
