51 16... Removing and installing/replacing side trim panels on center console on left or right

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

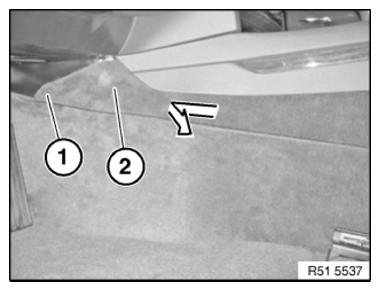

Release screw (1).

Slide trim panel (2) in direction of arrow and remove.

Fig 1: Sliding Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

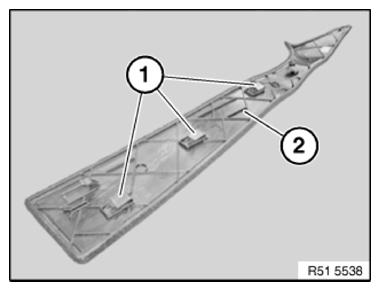

Retainers (1) must be correctly seated in panel guides (2).

Fig 2: Identifying Retainers And Panel Guides

Courtesy of BMW OF NORTH AMERICA, INC.

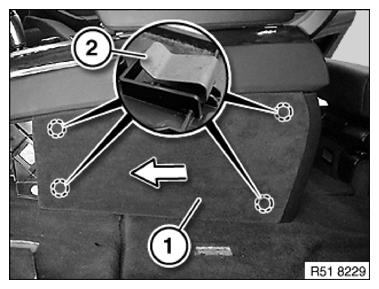

Feed side carpet (1) towards front out of center console.

Installation note:

Replace faulty retainers (2).

Fig 3: Identifying Carpet And Retainers

Courtesy of BMW OF NORTH AMERICA, INC.
