51 16... Removing and installing grab handle holder

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

72 1 200

WARNING: FOLLOW SAFETY INFORMATION FOR REPAIR WORK ON VEHICLES WITH AIRBAG SYSTEMS .

IMPORTANT: RISK OF DAMAGE! DO NOT USE SHARP TOOLS IN THE AREA OF THE HEAD AIRBAG .

Necessary preliminary tasks:

Remove headlining. See HEADLINING (WITH PANORAMA GLASS ROOF) or ROOFLINER (WITHOUT PANORAMIC SUNROOF) .

IMPORTANT: Lay out protective mats to protect the interior against dirt/debris from the drilled-out rivets and damage.
Lay out protective mats in the relevant working area:

Dashboard
Entrance area
Passenger compartment

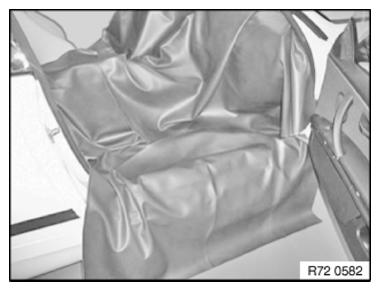

Fig 1: Identifying Dashboard And Passenger Compartment Area

Courtesy of BMW OF NORTH AMERICA, INC.

Drill off the rivet plate (1) down to rivet shank with a 10 mm twist drill bit.

Only on F01, F02 and F04:

Bracket (2) has two rivets (1) at the top and one screw (1) at the bottom.

Tightening torque 51 16 23AZ .

Unscrew holder (2).

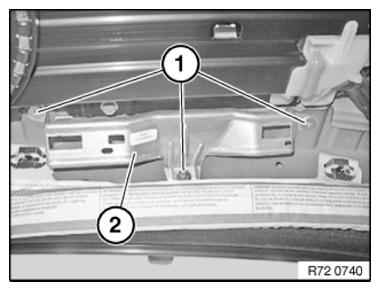

Fig 2: Identifying Rivet Plate And Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Deburr remaining rivets with nipper pliers.

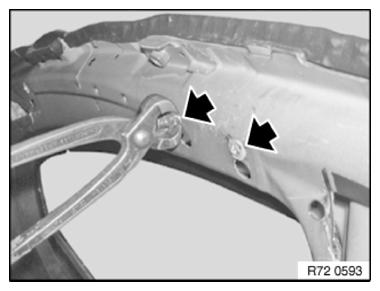

Fig 3: Removing Deburr Remaining Rivets

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Lay out possible paintwork damage on the side frame with primer.

Removal of the top rivet heads (1):

Stabilize sheet metal tab with screwdriver.

Drive out rivet heads with punch.

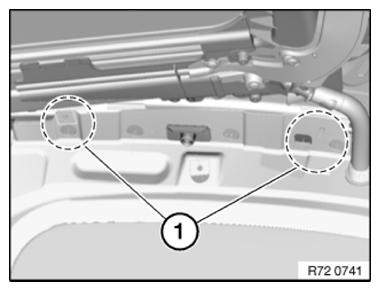

Fig 4: Identifying Rivet Heads

Courtesy of BMW OF NORTH AMERICA, INC.

Removal of the bottom rivet heads (1):

Special tool 72 1 200 for collecting rivet remnants.

Shank of special tool is flexible and can be adapted to the relevant body contours.

NOTE: Insert butyl in collecting tray to secure rivet remnants against falling out.

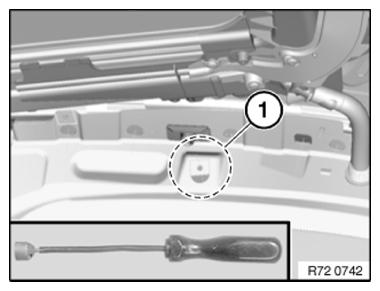

Fig 5: Identifying Bottom Rivet Heads

Courtesy of BMW OF NORTH AMERICA, INC.

Insert special tool 72 1 200 through bore hole in the body underneath the attachment point.

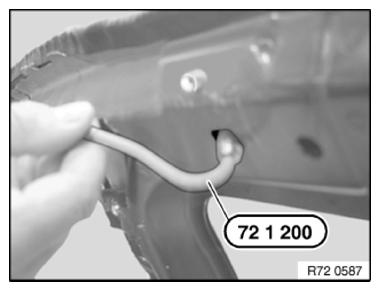

Fig 6: Inserting Special Tool (72 1 200) To Bore Hole In Body Underneath

Courtesy of BMW OF NORTH AMERICA, INC.

Position special tool from rear on rivet head in cavity.

NOTE: Make sure collecting tray is correctly fitted on rivet head.
A second person will be needed to help hold the special tool on the rivet head during the driving-out operation.
With hammer and punch drive out stem into collecting tray.
Carefully maneuver special tool out of body so that rivet head does not fall out of collecting tray.

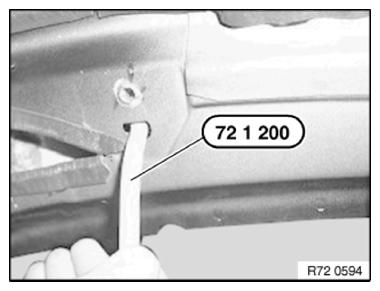

Fig 7: Positioning Special Tool From Rear On Rivet Head In Cavity

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: If the rivet falls out of the collecting tray into the side frame when the special tool is fed out, this area must be generously filled with foam.
For details of procedure for filling cavities with foam, see further operations.
Use cavity preservation (refer to BMW Parts Department) for foam filling.
Cavity foam (refer to BMW Parts Department) can also be used if necessary.

Preparing tube for foam can:

Slide hose (1) at least 6 cm into hose (2).

Cut end of hose (1) at an angle.

Mark (3) is not required.

Fit hose to foam can.

Run hose into corresponding opening in body.

Fill cavity in an operation lasting 0, 5 seconds.

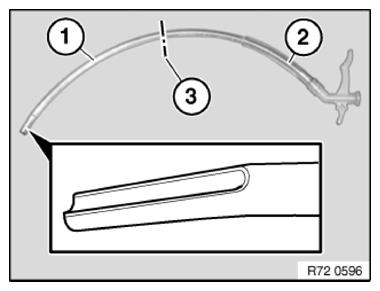

Fig 8: Identifying Hose Mark

Courtesy of BMW OF NORTH AMERICA, INC.

WARNING: Empty foam can completely onto cardboard and after hardening dispose of foam and can in residual waste.
Can may burst if not completely emptied.
