51 16 992 Disassembling and assembling lock barrel (lock barrel removed)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

If necessary, remove LOCK BARREL

Sort supplied retainers (1) according to graphic.

(X) Embossed number on retainer (1)

(Y) Installation position in lock barrel

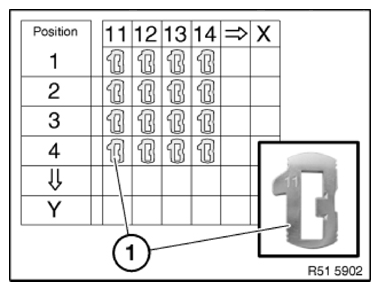

Fig 1: Identifying Embossed Number On Retainer

G09879041

Courtesy of BMW OF NORTH AMERICA, INC.

Insert spring (1) into first position of lock barrel (2).

NOTE: Lock barrel version (2) differs according to vehicle.

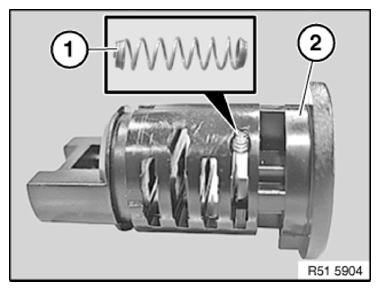

Fig 2: Inserting Spring Into First Position Of Lock Barrel

G09879042

Courtesy of BMW OF NORTH AMERICA, INC.

Insert retainer (1) with lowest stamped number (X) in first position (Y) in lock barrel (2) so that it snaps into place audibly.

NOTE: Number of retainers (1) differs according to vehicle.

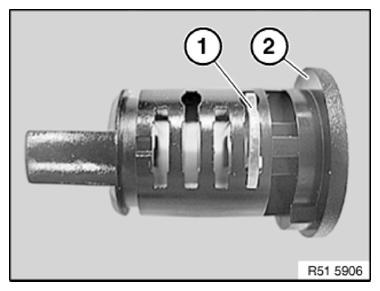

Fig 3: Identifying Retainer And Lock Barrel

G09879043

Courtesy of BMW OF NORTH AMERICA, INC.

Insert ignition key (1) in lock barrel (3) and check whether retainer (2) is flush with housing.

(A) OK

(B) not OK

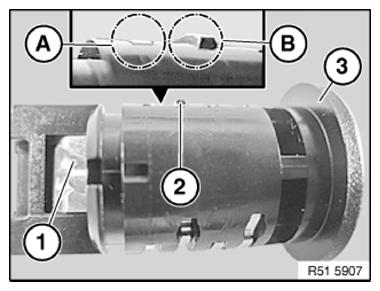

Fig 4: Inserting Ignition Key In Lock Barrel

G09879044

Courtesy of BMW OF NORTH AMERICA, INC.

If retainer (2) is not OK, press retainer (2) out of lock barrel (3) with a suitable tool (1).

Repeat work operations with retainer (2) with next higher number (X) until correct retainer (2) has been found.

Carry out all further positions in lock barrel as described in the process above.

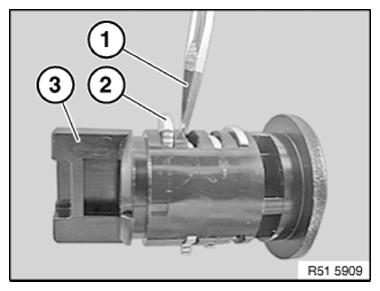

Fig 5: Identifying Retainer And Lock Barrel

G09879045
