51 16 480 Removing and installing or replacing front grab handle

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Fold open trim in downward direction.

Release screws underneath.

Tightening torque 51 16 03AZ .

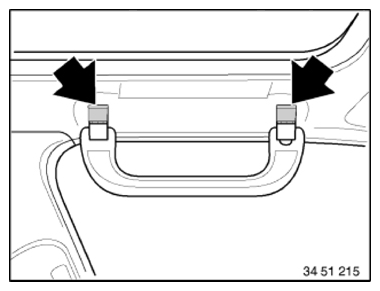

Fig 1: Locating Front Grab Handle

Courtesy of BMW OF NORTH AMERICA, INC.
