51 16 405 Removing and installing/replacing roller sunblind on side window of left or right rear door

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove REAR DOOR TRIM PANEL

Release screws (1).

Remove roller sunblind module

Tightening torque 51 16 18AZ .

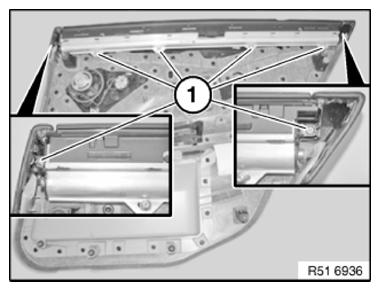

Fig 1: Identifying Screws Of Roller Sunblind Module

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Check holder (1) for damage. If necessary, replace roller sunblind.

Insert guide rail (2) into guide (3).

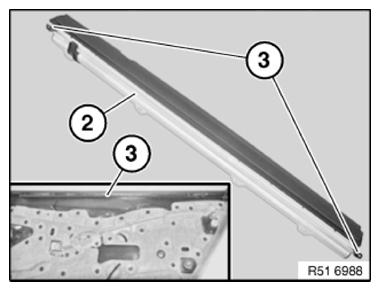

Fig 2: Identifying Holder And Guide Rail

Courtesy of BMW OF NORTH AMERICA, INC.
