51 16 368 Replacing right glovebox with enclosure

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.

Necessary preliminary tasks:

Remove DAMPER FOR GLOVEBOX

Modify glovebox light (1).

If necessary, modify cover (2)

Modify cover (3).

Fig 1: Identifying Glovebox Light And Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) on glovebox cover (2).

Remove glovebox cover (2).

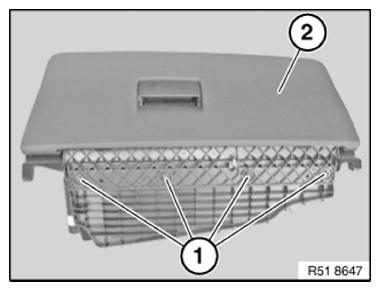

Fig 2: Identifying Screws On Glovebox Cover

Courtesy of BMW OF NORTH AMERICA, INC.
