51 16 227 Removing and installing/replacing trim on center console at side left or right

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.

Necessary preliminary tasks:

Remove complete CENTER CONSOLE

Release screws (1) on back of trim (2).

Fig 1: Identifying Screws On Back Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) on front of trim (2).

Remove trim (2).

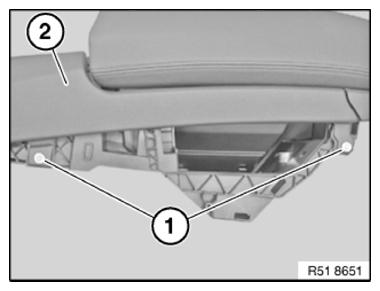

Fig 2: Identifying Screws And Trim

Courtesy of BMW OF NORTH AMERICA, INC.
