51 16 164 Replacing cover for rear center console
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.
Necessary preliminary tasks:
- Remove REAR CENTER CONSOLE TRIM

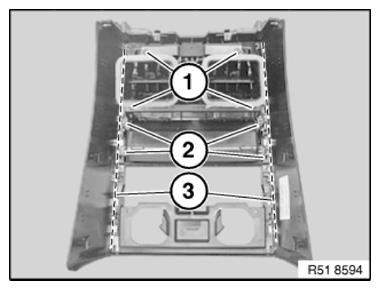

Release screws and modify fresh air grille (1).
Detach storage compartment (2) and modify.
Remove left and right decorative trim in the marked area (3) and modify.
Installation:
Check that fiberglass lines in decorative trim are properly clipped on. Install decorative trims flush. Retaining tabs and clips must not be damaged.
