51 16 080 Removing and installing or replacing sun visor and left or right counter support
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.

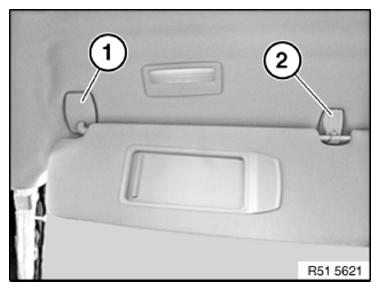

Lever out cover (1) on joint.
Lever out trim (2) on counter support.
Installation note:
Cover (1) and trim (2) must not be damaged.

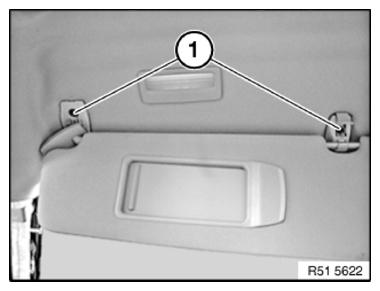

Release screws (1).
Tightening torque 51 16 02AZ .
Disconnect plug connection for light and remove sun visor.
Installation note:
Perform function check on lighting.
