51 16 063 Removing and installing/replacing interior mirror (overview)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Interior mirrors with modified mirror base will be installed as of series launch F20 and for all subsequent series launches.
Observe new REPAIR INSTRUCTIONS !

Distinguishing feature:

previous version, small mirror base (1) with round base plate on windscreen.
new version, large mirror base (2) with square base plate on windscreen.

NOTE: Dismantling of mirror cap is identical on both versions.

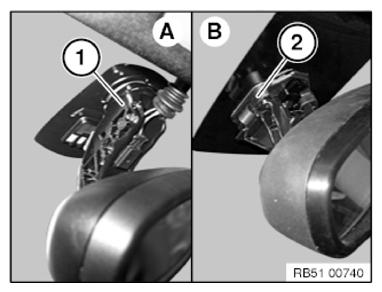

Fig 1: Identifying Mirror Base

Courtesy of BMW OF NORTH AMERICA, INC.

Version with mirror arm end cap:

Previous version.

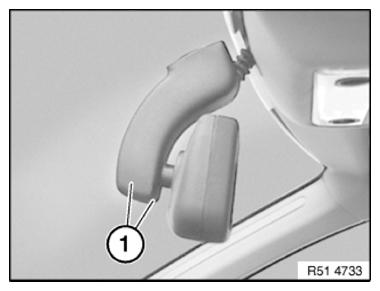

Fig 2: Identifying Mirror Arm End Cap
Courtesy of BMW OF NORTH AMERICA, INC.

Version with mirror arm end cap:

NEW VERSION .

Fig 3: Identifying Mirror Arm
Courtesy of BMW OF NORTH AMERICA, INC.

Version with rain sensor:

Previous version.
NEW VERSION .

Fig 4: Identifying Rain Sensor
Courtesy of BMW OF NORTH AMERICA, INC.

Version with Autobeam:

Previous version.
NEW VERSION .

Fig 5: Identifying Autobeam
Courtesy of BMW OF NORTH AMERICA, INC.

Version with Toll interior mirror for Japan:

Previous version.
NEW VERSION .

Fig 6: Identifying Toll Interior Mirror (Japan)
Courtesy of BMW OF NORTH AMERICA, INC.
