51 45... Removing and installing/replacing lower instrument panel cover
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.

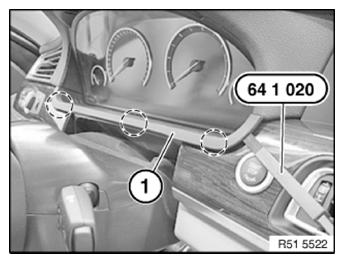

Carefully unclip cover (1) with special tool 64 1 020 at marked points and remove.
Installation note:
If necessary, replace faulty clamps on back of cover (1).
Replacement
Modify clamps.
