51 45... Removing and installing/replacing left cover on instrument panel
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.

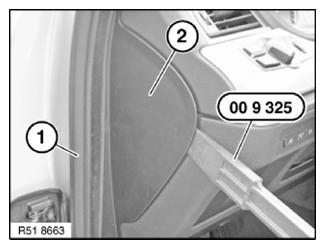

Pull off seal (1) in the area of the instrument panel cover (2).
Unclip instrument panel cover (2) at the side, as illustrated, using special tool 00 9 325 .

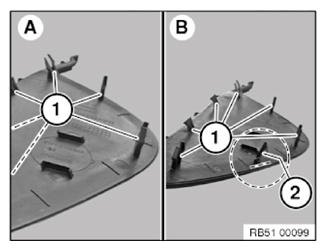

Different versions:
Graphic A shows cover version up to 12/2009
Graphic B shows cover version from 12/2009
Installation note:
Retaining tabs on cover (1) or (1) and (2) must not be damaged or missing.
Replacement
Only applies to F07 up to 12/2009
As only the new version of the cover (Graphic B) is obtainable from the BMW Parts Department, remove retaining tab (2) before fitting as shown in Graphic A.
