51 45 195 Removing and installing/replacing trim for lower right instrument panel (ECE only)
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

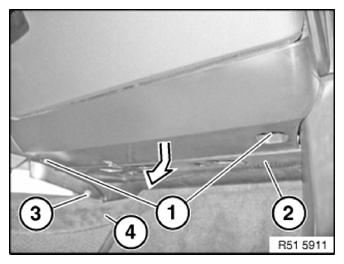

Release screw (3) and remove carpet cover (4) towards front.
Release screws (1).
Detach trim panel (2) and drop slightly.
Disconnect plug connections at the back.
Remove trim (2) in direction of arrow.
Installation note:

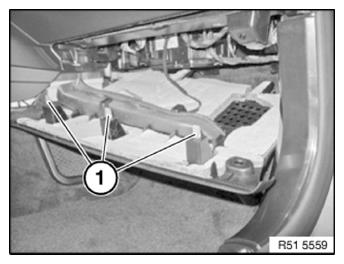

If necessary, replace retainers (1).
Replacement
Remove FOOTWELL LIGHT .
