51 23 265 Removing and installing/replacing left or right gas pressure spring for engine compartment lid
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Danger of injury and damage!
For the following tasks, you must take the appropriate measures to support the engine compartment lid.
As an alternative, you can enlist the help of a second person to hold the engine compartment lid.
For the following tasks, you must take the appropriate measures to support the engine compartment lid.
As an alternative, you can enlist the help of a second person to hold the engine compartment lid.
Make a written record of the installation position of the gas pressure spring(s) before removing.

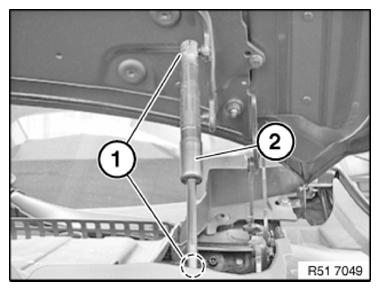

Carry out BALL SOCKET REMOVAL at both ends (1) of gas pressure spring (2).
