51 23 211 Removing and installing/replacing pull cable for hood/bonnet locks at front

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove TOP REAR CONNECTION

Unclip clutch housing Bowden cable (1) at marked points.

Installation note:

Clips must not be damaged.

To open up clutch housing cover, lever up cover (2) in direction of arrow.

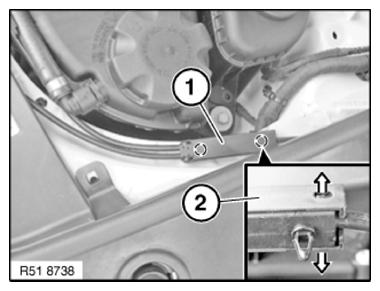

Fig 1: Unclipping Clutch Housing Bowden Cable

G09879267

Courtesy of BMW OF NORTH AMERICA, INC.

Feed rear Bowden cable (2) out of sliding carriage (1) and clutch housing (3).

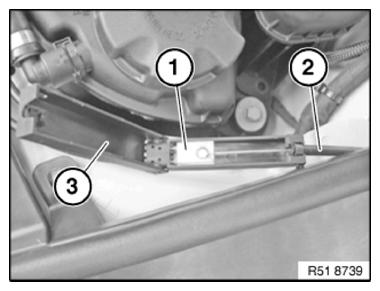

Fig 2: Identifying Bowden Cable, Clutch Housing And Carriage

G09879268

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Shown removed here for purposes of clarity.

Pull back retaining spring from release lever (1).

Feed Bowden cable (2) out of release lever (1) and catch carrier (3).

Repeat procedure on second bonnet lock.

Unthread cable for bonnet locks and remove.

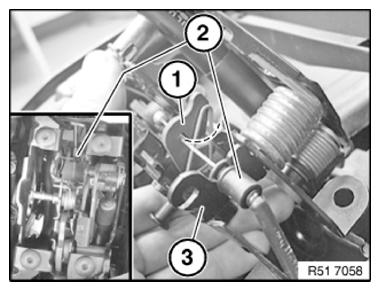

Fig 3: Identifying Lever, Bowden Cable And Catch Carrier

G09879269

Courtesy of BMW OF NORTH AMERICA, INC.
