51 23 201 Removing and installing/replacing release mechanism for retaining hook on engine compartment lid

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Screw connection only:

Release screws (1) on engine compartment lid (2).

Unhook Bowden cables (4) from release element (3).

Remove release element (3).

Fig 1: Identifying Screws On Engine Compartment Lid And Bowden Cables

Courtesy of BMW OF NORTH AMERICA, INC.

Riveting:

Drill off blind rivets (1).

Unhook Bowden cables (2) from release element (3).

Remove release element (3).

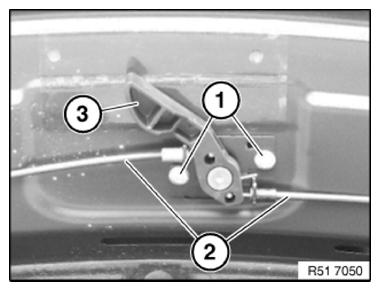

Fig 2: Identifying Bowden Cables, Blind Rivets And Element

Courtesy of BMW OF NORTH AMERICA, INC.
