51 23 131 Adjusting left or right striker on engine compartment lid

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Adjusting striker is described in:

ADJUSTING ENGINE COMPARTMENT LID

Undo screws (3) and remove striker (2).

Tightening torque 51 23 1AZ .

Disconnect Bowden cable (1).

Installation note:

ADJUST ENGINE COMPARTMENT LID

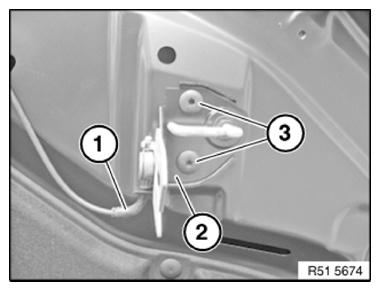

Fig 1: Identifying Bowden Cable, Screws And Striker

Courtesy of BMW OF NORTH AMERICA, INC.
