51 23 110 Removing and installing/replacing left engine compartment lid lock

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove SERVICE FLAPS, LEFT AND RIGHT

Slacken screws (1) and release screws (2).

Tightening torque 51 61 4AZ .

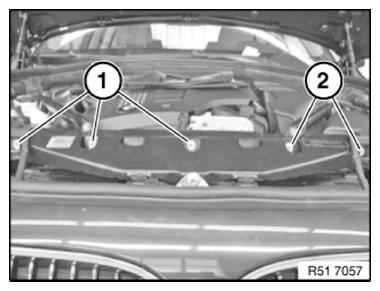

Fig 1: Identifying Slacken Screws

G09879260

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Shown removed here for purposes of clarity.

Pull back retaining spring from release lever (1).

Feed Bowden cable (2) out of release lever (1) and lock carrier (3).

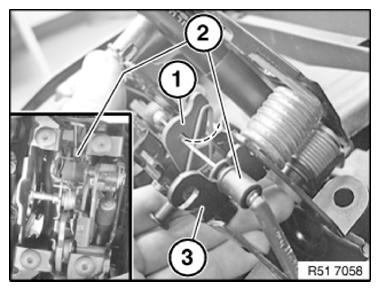

Fig 2: Identifying Lever, Bowden Cable And Carrier

G09879261

Courtesy of BMW OF NORTH AMERICA, INC.

Engine compartment lid catch with microswitch:

Detach plug connection (1) by twisting from catch carrier.

Unlock plug connection (1) and disconnect.

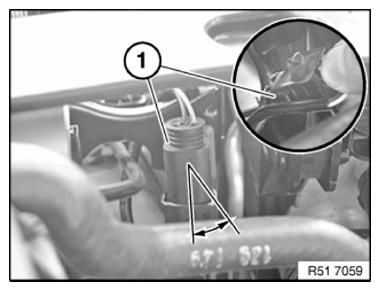

Fig 3: Detaching Plug Connection

G09879262

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) on engine compartment lid lock (2).

Tightening torque 51 23 2AZ .

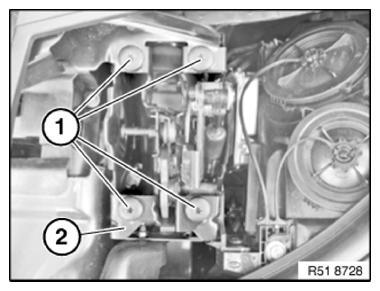

Fig 4: Identifying Screws On Engine Compartment Lid Lock

G09879263

Courtesy of BMW OF NORTH AMERICA, INC.

Push engine compartment lid lock (1) inwards until lock carrier (2) can be raised at the rear (see dashed line in illustration).

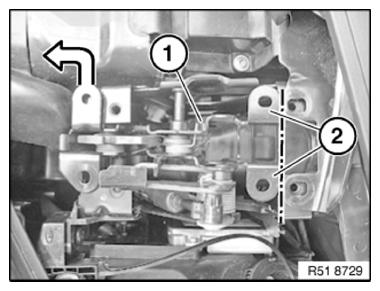

Fig 5: Pushing Engine Compartment Lid Lock

G09879264

Courtesy of BMW OF NORTH AMERICA, INC.

Lift out engine compartment lid lock (1) at rear.

If necessary, feed out cable from microswitch for anti-theft alarm system.

Remove engine compartment lid lock (1).

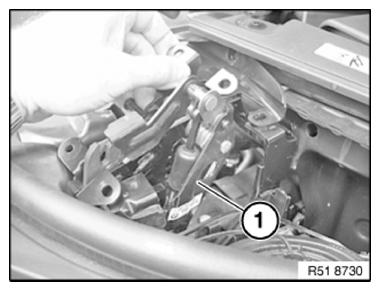

Fig 6: Removing Engine Compartment Lid Lock

G09879265

Courtesy of BMW OF NORTH AMERICA, INC.
