51 36 056 Removing and installing/replacing trim strip on side window on rear left or right

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 317

NOTE: Trim strip (1) must not be bent during removal.

Starting at bottom, unclip trim strip (1) 00 9 317 from tabs (2) in succession with special tool.

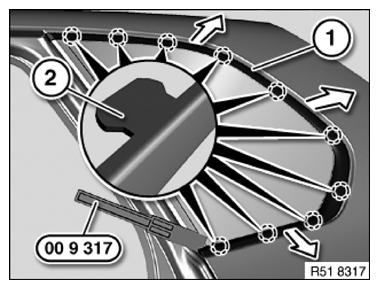

Fig 1: Unclipping Trim Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Tabs (2) must not be missing or damaged.

Lock Dual-Look (1) on trim strip by applying pressure.

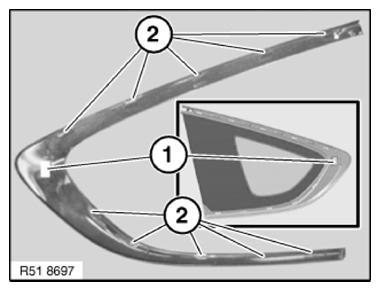

Fig 2: Identifying Tabs And Lock Dual-Look On Trim Strip

Courtesy of BMW OF NORTH AMERICA, INC.
