51 71... Installing and removing/replacing vehicle hoist mounting
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:

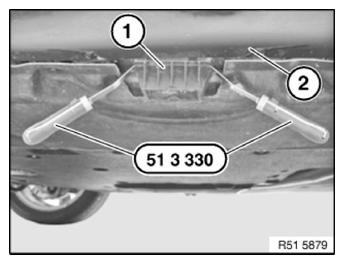

Insert special tool 51 3 330 between vehicle hoist mounting (1) and vehicle underbody (2) and remove.
IMPORTANT:
Risk of corrosion!
Touch up paintwork damage.
Re-establish wax layer.
Touch up paintwork damage.
Re-establish wax layer.
