51 71 482 Removing and installing/replacing left or right tension strut (on rear axle)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Observe safety information for raising the vehicle Driving without the tension strut is not permitted!

Only on F12, F13:

Release expanding rivet (1) and remove cover (2).

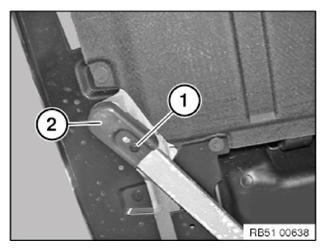

Fig 1: Identifying Cover With Expanding Rivet

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (2) M12x1.5x53.

Tightening torque 51 61 12AZ .

Installation note:

Replace screw (2), tighten to specified torque and angle of rotation.

Release screw (3) M12x1.5x70.

Tightening torque 51 61 10AZ .

Installation note:

Replace screw (3), tighten to specified torque and angle of rotation.

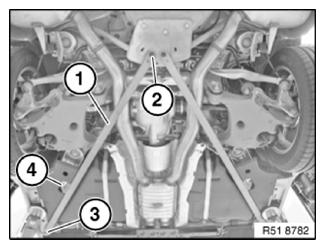

Fig 2: Identifying Right Tension Strut Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew nuts (4).

Tightening torque 51 61 11AZ .

Remove tension strut (1).
