51 71 107 Replacing seal on left or right rear door

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The positioning of the seal must be performed at two points on the front door with positioning aids to be stuck on.
Positioning aids are included with new seals.

Position of seal (3) on front door:

Fig 1: Identifying Position Of Seal On Front Door

Courtesy of BMW OF NORTH AMERICA, INC.

Area (B) at line (A) to positioning aids (2) to be stuck on.

Clean bonding surfaces on paint with adhesive cleaner (sourcing reference: BMW Parts Department).

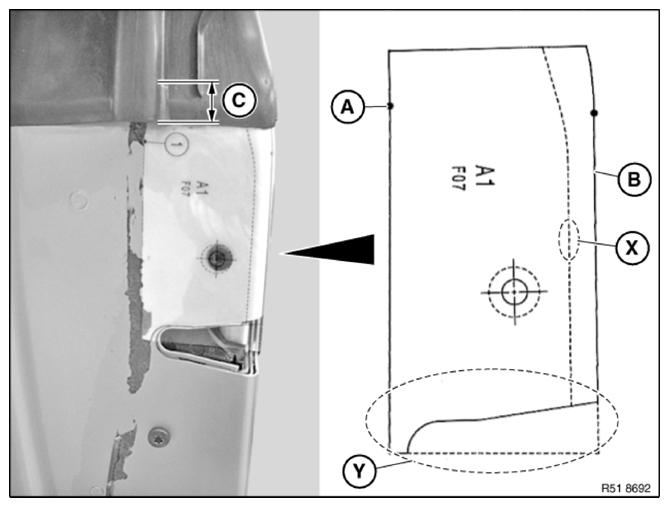

Positioning aid "A1" for front door, left ("B1" right)

Fig 2: Identifying Positioning Aid A1 For Front Door, Left (B1 Right)

Courtesy of BMW OF NORTH AMERICA, INC.

Detach prestamped positioning aid from backing.

Positioning aid "A1" front door, left (door lock, top)
Positioning aid "B1" front door, right (door lock, top)

Align positioning aid with printed help markings (X, Y), bores and contact edge (B) to front door and press.

Seal must be pushed into the window cavity cover strip by dimension (C).

C = 10 mm

Seal must rest on positioning edge (A) during sticking.

X Start of bend radius

Y Bore for door lock

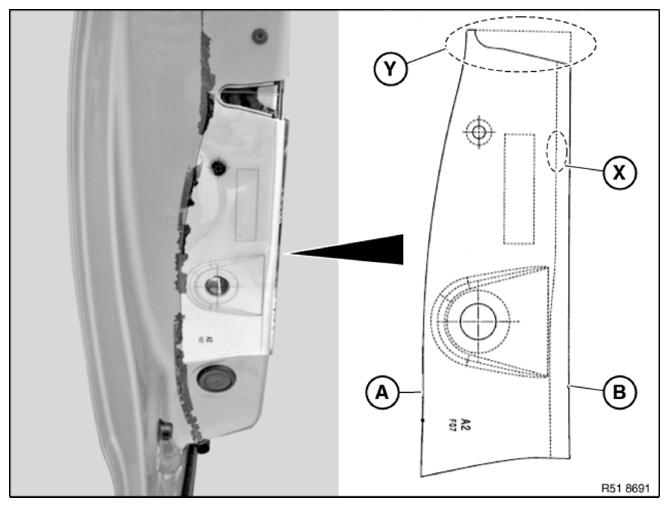

Positioning aid "A2" for front door, left ("B2" right)

Fig 3: Identifying Positioning Aid A2 For Front Door, Left (B2 Right)

Courtesy of BMW OF NORTH AMERICA, INC.

Detach prestamped positioning aid from backing.

Positioning aid "A2" front door, left (door lock, bottom)
Positioning aid "B2" front door, right (door lock, bottom)

Align positioning aid with printed help markings (X, Y), bores and contact edge (B) to front door and press.

Seal must rest on positioning edge (A) during sticking.

X Start of bend radius

Y Bore for door lock

When continuing, keep parallel to the door interior panel radius.

IMPORTANT:

Do not grip bonding surface.
It is not the time of the pressure, but rather the level of pressure (approx. 10... 15 N/cm² ) that is decisive.
Separation of seal after pressing destroys the adhesive layer.

NOTE: After being pressed on gently, seal can be pulled off again up to 3 times. Do not dirty adhesive area.

Clean bonding surfaces on paint with adhesive cleaner (sourcing reference: BMW Parts Department).

Remove positioning aids and assemble front door.

Glue seal as follows:

Pull protective film (liner) off seal in stages.
Gently press seal without stretching up to start of positioning aids.
Check the positioning of the seal and correct as needed
Firmly press down seal perpendicular to the bonding surface
Pull remaining protective film (liner) off seal.
Press remaining seal without stretching.
Check the positioning of the seal and correct and firmly press down as needed
