51 71 015 Removing and installing/replacing left or right underbody panelling
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

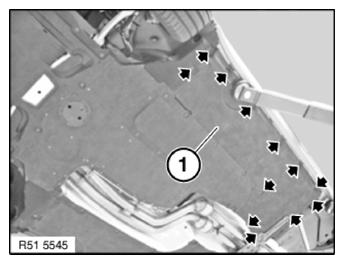

Graphic is only an example. There may be differences in specific details depending on engine version.
Unscrew all bolts.
Tightening torque 51 75 1AZ .
Remove underbody panelling (1).
Installation note:
Make sure underbody panelling (1) is correctly seated.
