51 64 010 Removing and installing/replacing left or right V-support

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Driving without the V-support is not permitted (risk of damage to the body).

Necessary preliminary tasks:

Remove front BUMPER PANEL .

Not in the case of 12-cylinder models:

Undo screw connection (1) on V-braces (2).

Tightening torque 51 61 6AZ .

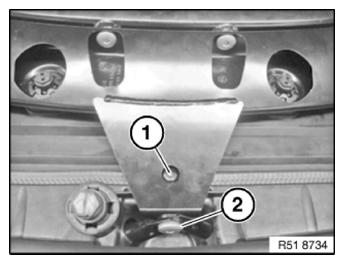

Fig 1: Identifying Screw Connection On V-Braces

Courtesy of BMW OF NORTH AMERICA, INC.

Only in the case of 12-cylinder models:

Undo screw connection (2) on V-braces.

Tightening torque 51 61 6AZ .

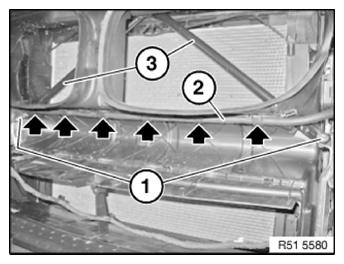

Fig 2: Identifying Screw Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Undo bolt (1) on V-brace (3) on left or right.

Tightening torque 51 11 7AZ .

Maneuver out V-support (3) upwards.

Installation note:

Hose pipe (2) for headlight washer system high-pressure nozzle (right) must be correctly clipped into place at marked points.

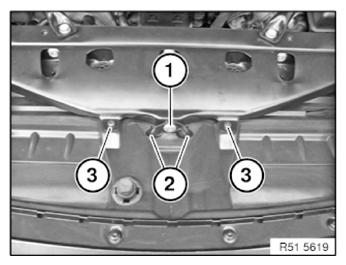

Fig 3: Identifying Bolt On V-Brace (Left/Right)
