51 48 001 Removing and installing/replacing insulation lining on engine hood/bonnet

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Example shown on F01: There may be differences in detail in the case of other vehicle types.

Release all expanding rivets/clips on damping material (1).

Remove damping material (1).

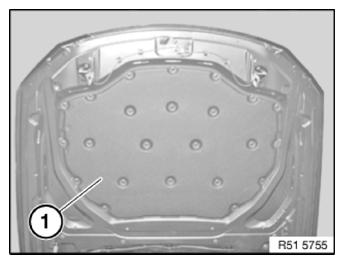

Fig 1: Identifying Damping Material
G09879660Courtesy of BMW OF NORTH AMERICA, INC.
